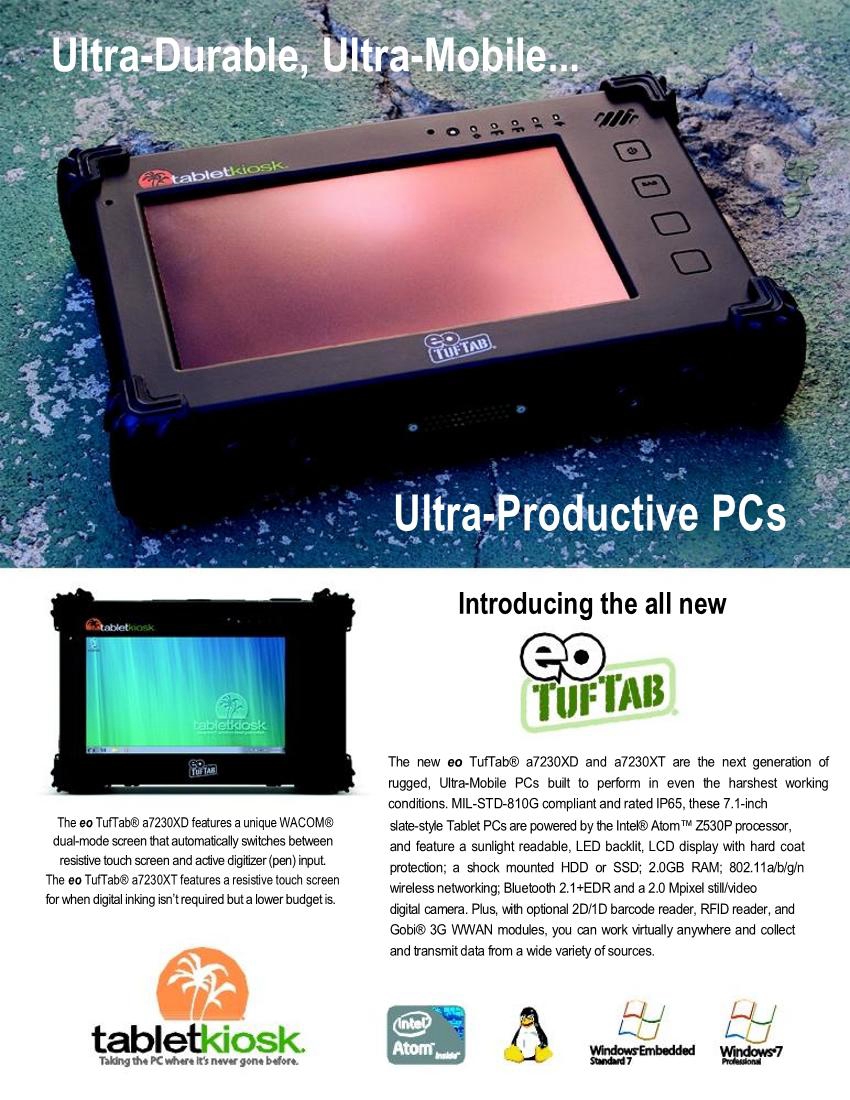

• 7"TFT LED backlit WSVGA LCD display

• Duel, hot swappable, Lithium-Ion Polymer Batteries

• 2GB DDR2 533/400 MHz SODIM

• Dual channel Wi-Fi 802.11 a/b/g/n

• Intergrated 2.0 Magapixel CCD Still/Video camera

• 120GB SATA HDD standard

• Bluetooth® 2.1+EDR

• Meets MIL-STD-810G standards and is rated IP65

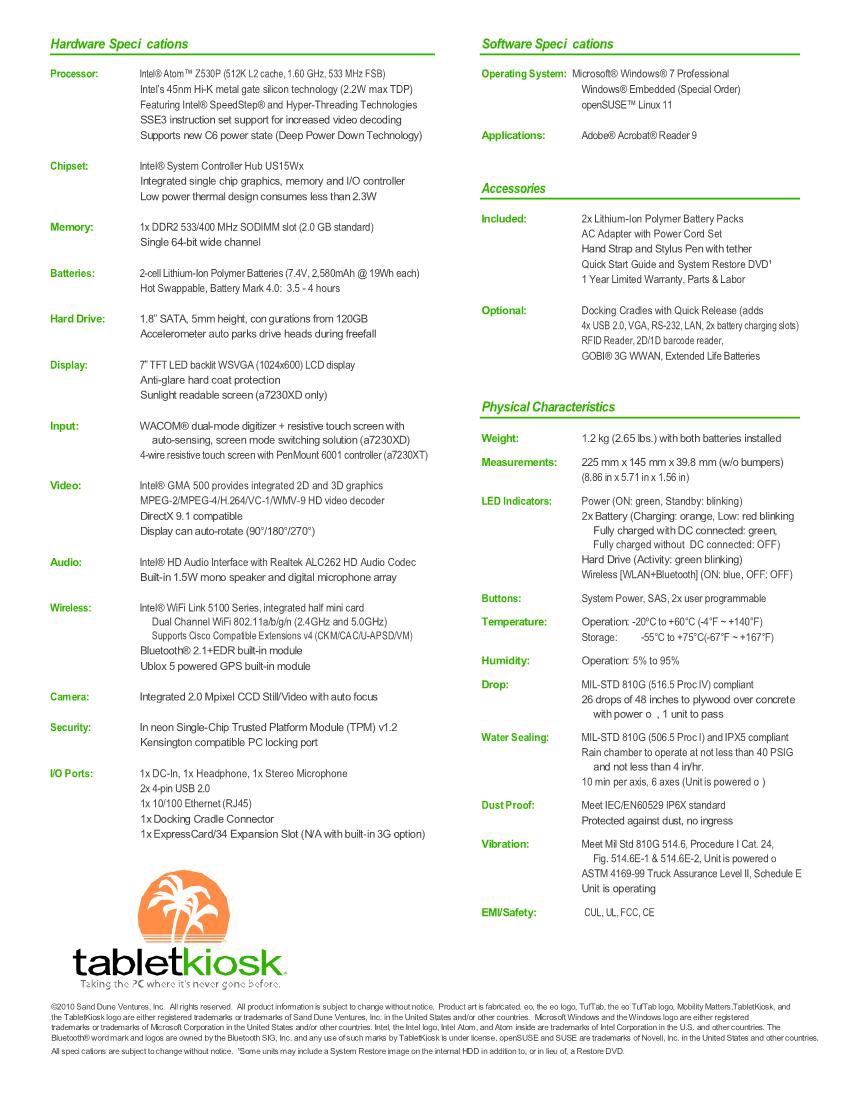

Processor

Intel® Atom™ Z530P

1.60 GHz, 32KB/24KB L1 cache, on-die 512-KB 8-way L2 cache, 133 MHz Source-Synchronous FSB

Intel’s 45nm Hi-K metal gate silicon technology (2.2W max TDP)

Support for IA 32-bit architecture

Intel® Hyper Threading Technology (2 Threads)

Intel® Virtualization Technology (Intel® VT)

Advanced power management features including Intel Enhanced SpeedStep® Technology

Intel® Streaming SIMD Extensions-2 and -3 (Intel® SSE2 and Intel® SSE3) support and Supplemental Streaming SIMD Extension 3 (SSSE3) support

Supports C0/C1(e)/C2(e)/C4(e) power states

Supports new C6 power state (Deep Power Down Technology)

Execute Disable Bit support for enhanced security

Chipset

Intel® System Controller Hub US15WPx

Integrated single chip graphics, memory and I/O controller

Integrated DDR2 memory controller with 64-bit wide interface

Low power thermal design consumes less than 2.3W

Contains three Universal Host Controller Interface (UHCI) USB 1.1 controllers and an Enhanced Host Controller Interface (EHCI) USB 2.0 controller

Two PCI Express root ports supporting the PCI Express Base Specification, Revision 1.0a

Ultra DMA: Synchronous DMA protocol that redefines signals on the PATA cable to allow both host and target throttling of data and transfer rates up to 100 MB/s

Contains three SDIO/MMC expansion ports used to communicate with a variety of internal or external SDIO and MMC devices. Each port supports SDIO Revision 1.1 and MMC Revision 4.0 and is backward-compatible with previous interface specifications

Provides integrated 2D and 3D graphics and HD video decoding via the Intel® Graphics Media Accelerator 500

Power Management

ACPI 1.0b and 2.0 compliant

ACPI S0, S3, S4, S5

CPU states C0, C1, C2, C3, C4, C6 states

PCI Express Link states: L0, L0s, L1, L2, L3

Rapid Power Management

Memory

1x SODIMM DDR2 (Unbuffered, 64-bits/channel) slot with a standard configuration of 1.0 GB

Supports Single 64-bit Channel, 533/400 MHz DDR2 SDRAM

Batteries

2x Modular battery bays with 2x Removable, Hot Swappable batteries

Gas gauge IC Bench Mark BQ2084

2er (2S1P) Lithium-Ion Polymer rechargeable batteries

Typical voltage : 7.4V

Typical capacity: 2580mAh each

Typical power rating: 19.09Watt/hr

Charge Voltage: 8.4V

Max. Charge Current: 1A

Max. Discharge Current: 1.5A

Operating Temperature: Charge: +10°C ~ +45°C / Discharge: -20°C ~ +60°C

Charge time when system idle is approximately 3 hours per battery

Paired with spare batteries and the optional docking cradle allows for unlimited, continuous use with no downtime for recharging

Over Charge Protection, Over Discharge Protection, Over Current and Output Short Protection, Over Thermal Protection

Hard Drive

1.8" 5 mm height, SATA-150

Standard configuration with 120 GB @ 4,200 rpm

Automatic retry/error correction for high data integrity

Accelerometer auto-parks drive heads in case of freefall

Video

Intel® GMA 950 PCI Express, 250 MHz Core Render Clock at 1.05V core

Up to 256 MB shared video RAM

DirectX 9.1 Compatible, Intel® Dual Frequency Graphics Technology, Intel® Dynamic Video Memory Technology 3.0

Intel® Smart 2D Display Technology

High Performance MPEG-2/MPEG-4/H.264/VC-1/WMV-9 HD Video Decoding

VLD/iDCT Hardware Acceleration

Windows® Aero (Glass) Technology Capable

Accelerometer automatically rotates screen up to 360°

1024 x 600 Landscape, 600 x 1024 Portrait

Dual Display Support

External Display up to UXGA (1600x1200) with CRT Hot Plug support (when paired with optional docking cradle)

Display

CPT CLAA070NC0CCW 7-inch TFT LCD with LED backlight

Optimal viewing angles of up to 140º H, 110º V

WACOM® Dual Mode Digitizer/Touch Screen with controller (a7230XD)

4-wire Resistive Touch Screen with PenMount 6001 controller (a7230XT)

Digitizer supports up to 256 levels of pressure

1024 x 600 resolution

Sunlight Readable Display standard (a7230XD only)

ULTRA-BRITE™ 500nit enhanced Sunlight Readable Panel upgrade (optional)

Built-in ambient light sensor adjusts LCD brightness for improved battery life

Supports Stealth Mode

Audio

Intel® High Definition Audio Interface

Realtek ALC262VD2 HD Audio Codec

100dB Signal-to-Noise Ratio for DAC output

90dB Signal-to-Noise Ratio (A-weighting) for ADC input

Meets premium performance for Windows Logo Program 3.10

2+2 channel 16/20/24-bit / 44.1KHz/48KHz/96KHz/192KHz sampling rate output (DAC)

2+2+2 or 4 channel 16/20/24-bit / 44.1KHz/48KHz/96KHz sampling rate input (ADC)

Built-in 1.5W Speaker and Digital Microphone Array

3.5 mm Headphone & Microphone Plug 'n Play Jacks

WiFi Wireless

Intel® WiFi Link 5100 PCIe Half Mini Card with Power ON/OFF Switch

MIMO (Multiple Input, Multiple Output) support 802.11n with 1x2 MIMO

Dual-Band/Quad-Mode support (IEEE 802.11a/b/g/n), compatible with IEEE 802.11d /e (Quality of Service [QoS]), 802.11h, and European Telecommunication Standards Institute [ETSI] specifications), and IEEE 802.11i (pre-authentication)

Reduced power consumption in idle associated (25mW)

EIT v4.0 support

Automatic switching between the two bands (2.4 GHz and 5.0 GHz)

Uses the 5.170 to 5.825-GHz Industrial, Scientific, and Medical (ISM) frequency band as defined by the IEEE 802.11a specification

Uses the 2.412- to 2.497-GHz ISM frequency band defined by the IEEE 802.11b/g specifications

Provides 128- and 64-bit WEP encryption, hardware AES (support for key sizes of 128 bits, 192 bits, and 256 bits)

Hardware capability to support Cisco* Compatible Extensions v1/2/3/4

Supports IEEE 802.11 Power Save Protocol (PSP)

Supports Basic Service Set (BSS) (AP) and Independent Basic Service Set (IBSS) (peer-to-peer) modes (in legacy 802.11b/g only)

Supports Intel® Wireless Coexistence System (WCS) Phase II for Bluetooth® devices

Supports WiFi-WiMAX coordination

Wake on WLAN (WoWLAN) support

Bluetooth® Wireless

Billionton Bluetooth® 2.1+EDR built-in USB module with power via software

GPS

Weison ZYM-G5020 built-in USB module

50-channel u-blox technology, 32-channel acquisition engine with more than one million effective correlators

Hybrid GPS, GALILEO and SBAS (WAAS, EGNOS, MSAS, GAGAN) engine

<1 second Time To First Fix for Hot Aided Starts

Best-in-class acquisition and tracking sensitivity can simultaneously track 16 satellites while searching for new ones

Accelerated start-up at weak signals with KickStart feature

Supports AssistNow Online and AssistNow Offline A-GPS services; OMA SUPL compliant

GPS (L1 freq., C/A code)

4 Hz position update rate, Velocity Accuracy of 0.1m/s, Heading Accuracy of 0.5°

RoHS compliant and green

Barcode Scanner (opt)

Intermec EA15 high-performance, decoded 2D imager

Omnidirectional barcode reading

Scan rate of up to 200 scans per second in linear emulation mode or 56 scans per second in omnidirectional mode

Low power 3.3V operation

TTL RS-232 interface

CMOS technology for optimal image sensitivity and dynamic range

Fully compatible with Intermec’s family of decoded engines

EA15 Standard Imager

RFID Reader (opt)

Microprogram R-07050S1S8 Reader

ISO-14443 A & ISO 14443B & ISO15693 protocol standard

Tag compatibility includes: Mifare One S50/S70, Ultra Light, SR176, Srix4K, ICODE SLI, Tag-It HF-I

Full Mifare® functionality

Read & write functionality

High-speed transactions (9600 bps ~ 115200 bps)

Encrypted data transfer

25mW output power

Gobi® 3G WWAN(opt)

HSPA/UMTS – 800/850/900/1900/2100 MHz

Quad-band EDGE/GPRS/GSM – 850/900/1800/1900 MHz

Dual-band EV-DO/CDMA – 800/1900 MHz

Receive Diversity on all HSPA/UMTS/EVDO/CDMA bands

Receive equalization

Integrated Webcam

2.0 Mpixel CMOS Still/Video with auto focus (USB interface)

TPM Security

Infineon Single-Chip SLB 9635 TT 1.2 Trusted Platform Module (TPM)

Security architecture based on Infineon security controller family

Hardware hash accelerator for SHA-1 algorithm

Trusted Group Computing (TCG) v1.1B / v1.2 configurable mode of operations

Advanced Crypto Engine (ACE) for asymmetric key operations (up to 2048-bit key length)

Power saving sleep mode

Expansion Ports

ExpressCard/34 slot

1x 4-in-1 Media Card Reader (MS/MS Pro/SD/MMC)

I/O Ports

2x USB 2.0

1x DC-In

10/100 Ethernet (RJ45)

1x 3.5mm Audio Out, 1x 3.5mm Audio In

1x Cradle Connector (Optional Docking Cradle adds 4x USB 2.0 Ports, 1x RJ-45 jack for 10/100 Mbps Ethernet LAN, 1x AC-in connector for power cord, 2x battery charging slots, 1x RS-232 COM Port (9 pin DSub), 1x VGA Out)

Physical Characteristics

Weight

1.2 kg (2.65 lbs.) with both battery packs installed

Measurements

225 mm x 145 mm x 39.5 mm (8.86 in x 5.71 in x 1.56 in) not including rubber bumpers

Color

Black

LED Indicators

Power (ON: green, Standby: blinking)

Battery 1 (Charging: orange, Low (< 7%): red blinking, Fully charged with DC connected: green)

Battery 2 (Charging: orange, Low (< 7%): red blinking, Fully charged with DC connected: green)

Hard Drive (Activity: green blinking)

Wireless Networking / Bluetooth (Activity: blue blinking for WLAN, Bluetooth or 3G)

Function Buttons

System Power

SAS (Ctrl+Alt+Del)

User Programmable

User Programmable

AC Adapter

Input voltage (nominal): 100 ~ 240 Vac

Input voltage (maximum): 90 ~ 265 Vac

Input Frequency: 47 ~ 63Hz

Input current: 1.7A maximum at 90 Vac

Output voltage: 20.0V ~ 21.4V DC

Output current: 3.25A maximum

Output Power: 65W

SCP: Short Circuit Protection plus Auto-Recovery Function

OVP: Over-Voltage Protection, Latch Mode, up to 27.0Vdc maximum

OCP: Over-Current Protection, Auto-Recovery, up to 5.5A maximum

OTP: Over-Temperature Protection to prevent catastrophic failure from overheating.

Operating Environment

Temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Humidity: 5% ~ 95%

Storage Environment

Temperature: -55°C ~ +75°C
(-67°F ~ +167°F)

Drop Specification

MIL-STD 810G 516.6 Procedure IV

26 drops of 48 inches to plywood over concrete with unit off

1 unit to pass

Water Sealing

MIL-STD 810G 506.5 Procedure I and IEC/EN60529 IPX5 compliant

Rain chamber to operate at no less than 40 PSIG and no less than 4 in/hr.

10 min per axis, 6 axes

Jetting Test-IPX5 with internal nozzle diameter @ 6.3mm and delivery rate of 12.5 liters/min.

Core of substantial stream @ 40mm from 2.5m from unit for 3 min.

No visible damage, no ingress

Unit is non-operating

Dust Proof

Meets IEC/EN60529 IP6X standard

Tested with Talcum Powder (<0.075mm) @ 2kg per meter cubed

Protected against dust, no ingress

Vibration

Meet Mil Std 810G-514.6, Procedure I Cat. 24, Fig. 514.6E-1 & 514.6E-2

Unit is non-operating

ASTM 4169-99 Truck Assurance Level II, Schedule E

Unit is operating

EMI/Safety Regulations

CUL, UL, FCC, CE

Software Specifications

Operating Systems

Microsoft® Windows® 7 Professional (standard)

Microsoft® Windows® Embedded Standard 7 (optional)

Microsoft® Windows® XP supported (drivers available for download)

openSUSE™ Linux 11 (optional)

Applications

Adobe® Acrobat® Reader 9

Microsoft® Office 2007 capable

Included in the Box

Accessories:

2x Lithium-Polymer Batteries

AC Adapter with Power Cord Set

Quick Start Guide

Stylus Pen

PDF User's Manual on the desktop

System Recovery DVD or On-HDD Recovery Image

Warranty:

1 Year Limited Warranty, Parts & Labor (Standard)

2 Year and 3 Year Extended Warranty (Optional)
