POS 650

The POS 650 is specially developed to satisfy the needs of reliable systems in harsh environments, ergonomically designed to work efficiently in the Control Processing, Medical, Retail and Hospitality industries. It is designed for convenience and comfort, and its aluminum casing and fanless features help you to clean it easily. Watch the video below to see it in action.

The terminal has an IP66 rating– The first digit (6) indicates the terminal is dust tight giving complete protection against any solid matter entering the equipment. The second digit (6) indicates the terminal is protected against powerful jets of water meaning that a powerful jet can be aimed at the terminal from any direction with no harmful effect.

  • Features
  • 650 Specifications
  • 650 Pro Specifications
  • Photos
  • Video
  • PDF

• Whole System Water & Dust Proof (IP66 Certification)

• Aluminum Casing with Nanotechnology Coating

• Fanless and Ventless Design

• Water-Proof Ergonomic Card Reader (Optional)

• Removable Hard Disk

• Compact size and stationary small foot print

• Wireless LAN (Optional)

• Tilt Adjustment 0°~70°

• VESA Mount

• Customer Display (Optional)

POS 650 Specifications

CPU: Intel Atom N270 1.6GHz, w/512KB Cache
System Chipset: Intel 945GSE Chipset
BIOS: Award BIOS, 4M Support ACPI Function
Standard I/O: 1 × PS/2 Port (Keyboard)
4 × USB 2.0 Port (3 External USB 2.0 Port, 1 Internal USB 2.0 Port)
1 × Mini Printer Port
1 × VGA Port
1 × LAN Port
1 × Audio Port
1 × MIC Port
1 x Compact Flash type II socket for CF card
4 × RJ-48 Com Port (COM3 ~ 6)
System Memory: Two SODIMM DDR2 socket/ 1GB up to 2GB DDR2 533
Ethernet: REALTEK RTL8111C (10/100/1000)
Ethernet Controller Supports wake up-on-LAN function
VGA: Microsoft Windows GDI GUI Acceleration.
Audio Interface: Codec ALC662
USB Interface: Intel 945 GSE Support 4 Port
Hard Disk Drive: SATA: 1 x socket for HDD / 1 x Compact Flash Socket
Operator Display: Size:   15” (diagonal)
Active Area:   304.1 mm (H) x 228.1 mm (V)
Resolution:   1024 (H) x 768 (V) x R,G,B
Display Mode:   Normally White
Contrast Ratio:   500:1 type.
Luminance:   250 cd/m² type / 350 cd/m².
Touch Screen: Technology:   5 Wire analogue resistive Chemically strengthened backing glass.
Resolution:   4096 x 4096 points
Activation Force:   5.5g
Linearity:   62.0%
Transparency:   75%
Surface Hardness:  2H
Interface:   RS-232 Serial
MTBF:   1,000,000 touches / spot
Power Supply: Input Voltage 100 ~ 240Vac
Input Frequency 47 ~ 63Hz
Input Current 100-240Vac 1.5A
Output Voltage +12Vdc 5A
Operating
temperature
0°C to 40°C
Size 120mm(L) x 60mm(W) x 38mm(H)
Enclosure Water & Dust Protection (IP Rating): IP66
Weight: 8.5 Kg
EMC: CE、FCC Compliant、CCC
Safety: CE、VDE、CB、CCC

Touchscreen Technologies Inc.  2011

POS 650 Pro Specifications

Main Board GST-390D
CPU Supports Intel D510 Dual Core 1.66GHz, w/1MB Cache
System Memory 2 x SO-DIMM DDR2 Socket supports (Notebook type 200-Pin) Supports DDR2 667/800 DIMM Max. 4GB
Display Function CPU Integrated Graphic
Capacitor Solid Type
LCD Touch Panel
LCD Size 15” TFT LCD
Resolution 1024 X 768 pixels
Brightness 250 cd/m2  ,  350 cd/m2,
Touch Screen ELO or SENOR Five-wire Resistive Touch
Connectivity
SATA/IDE SATA: 1 X socket for HDD  / 1 X Compact Flash Pocket
LAN 1 x RJ-45 LAN port 10/100/1000 Mbps Internal 802.11g Wireless LAN (Optional)
USB 3 x External USB2.0 ports
Parallel 1 x Mini Printer port
External Serial 4 x RJ45 for COM or   2 X RJ45 for COM + 2 X RJ11 for Cash Drawer
Internal Serial COM 1 for VFD, COM2 for Touch Panel
VGA / Printer Port TTI 650 P (mini-printer port) / TTI 650 V (VGA port)
PS/2 KB 1 x Mini Din Jack
Audio 1 x Earphone Jack For Line-out
Mechanical & Environment
Dimension (W X D X H) 389 x 232 x 363 mm
Weight 8.5 Kg
Fanless & Ventless Aluminium Casing, Fanless & Ventless System
Infrared Function Built-in Infrared K/B & Mouse Receiver (Option)
Splash Resistant IP66 (IP43 with card reader)
Safety Certifications FCC / CE / CCC / TUV / CB
Storage Temperature -20°C ~ 60°C
Operating Temperature 0° ~ 40°C
Relative Humidity 10% ~ 90% (non-condensing)
Software
Operating System Windows 2000 / XP Pro XP Embeded / CE (6.0), Linux Kernel 2.4~2.6,  Business Vista, Windows 7, WEPOS, POS Ready
Self-testing Program SENOR Diagnostic
Peripheral Options
Infrared Keyboard Keyboard wedge Interface
Magnetic Card Reader Single Track, Double Tracks, Triple Tracks
Contactless Card Reader RFID (ISO / IEC 14443A / 13.56MHz)
Smart Card Reader ISO-7816 Compatible
Fingerprint Sensor Optical Type, 512 dpi
i-Button Dallas Key
Customer Display VFD 20X2 lines Display / 7” LCD Graphic Display

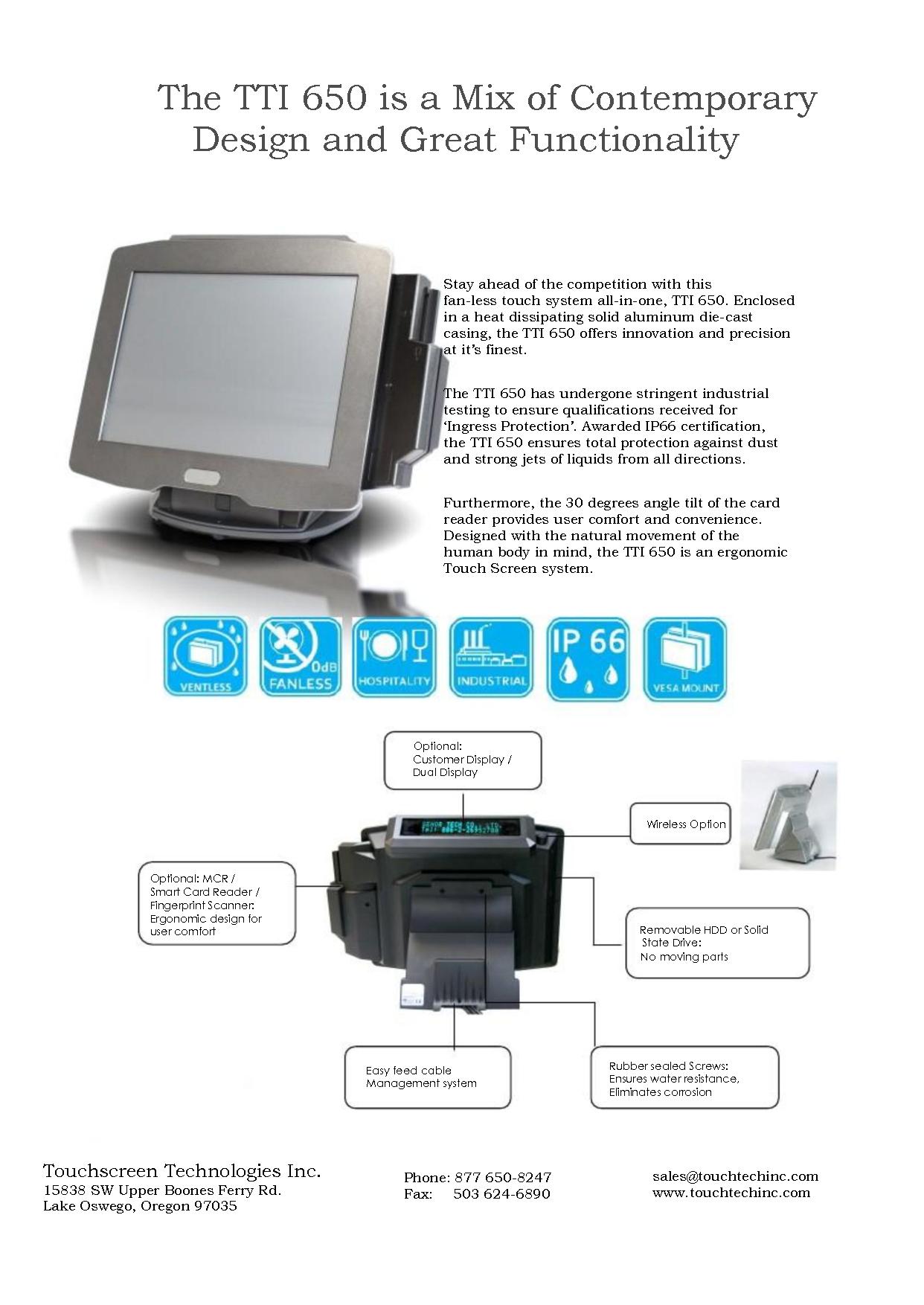

TTI650

POS650

TTI650

Rear Display

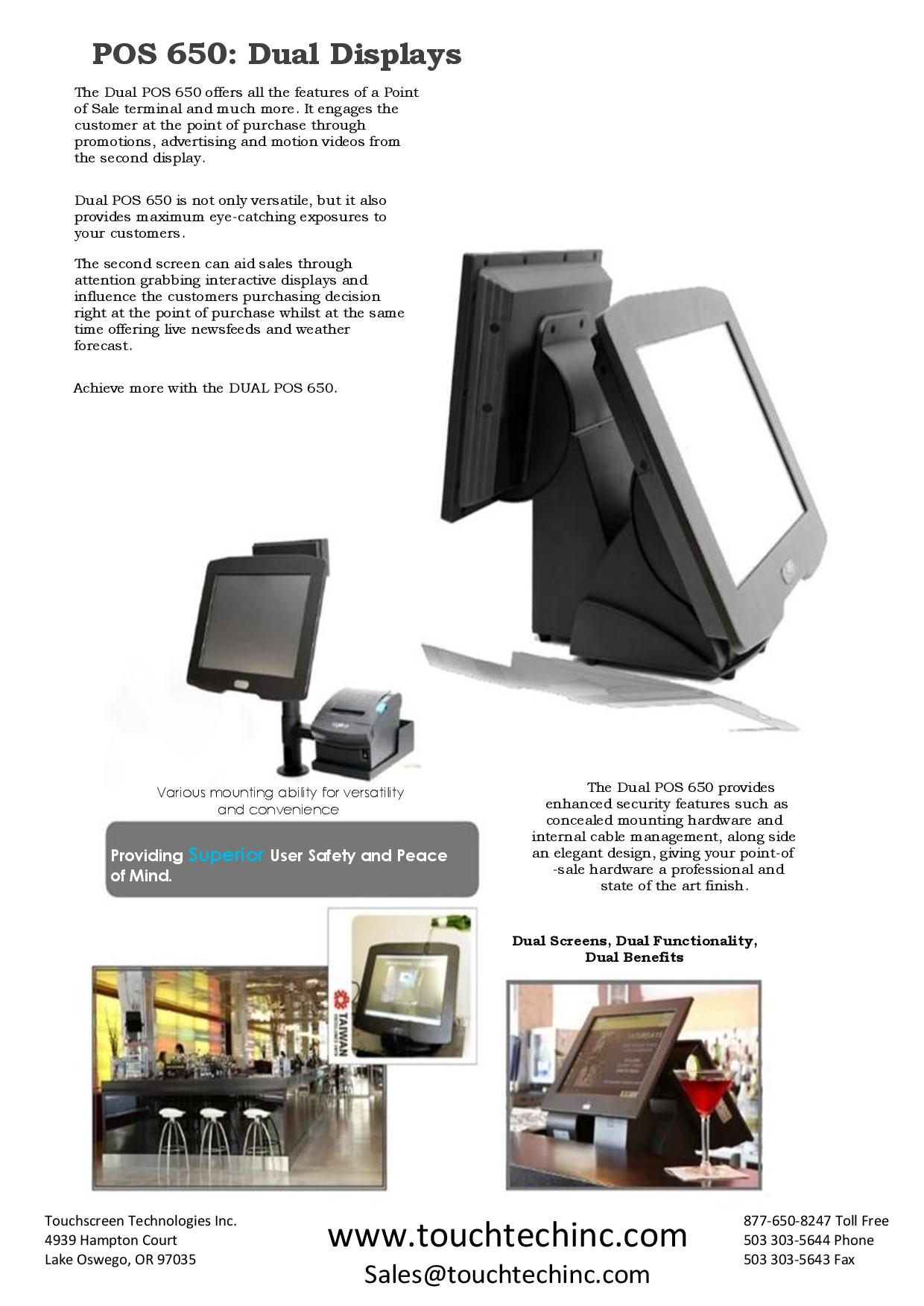

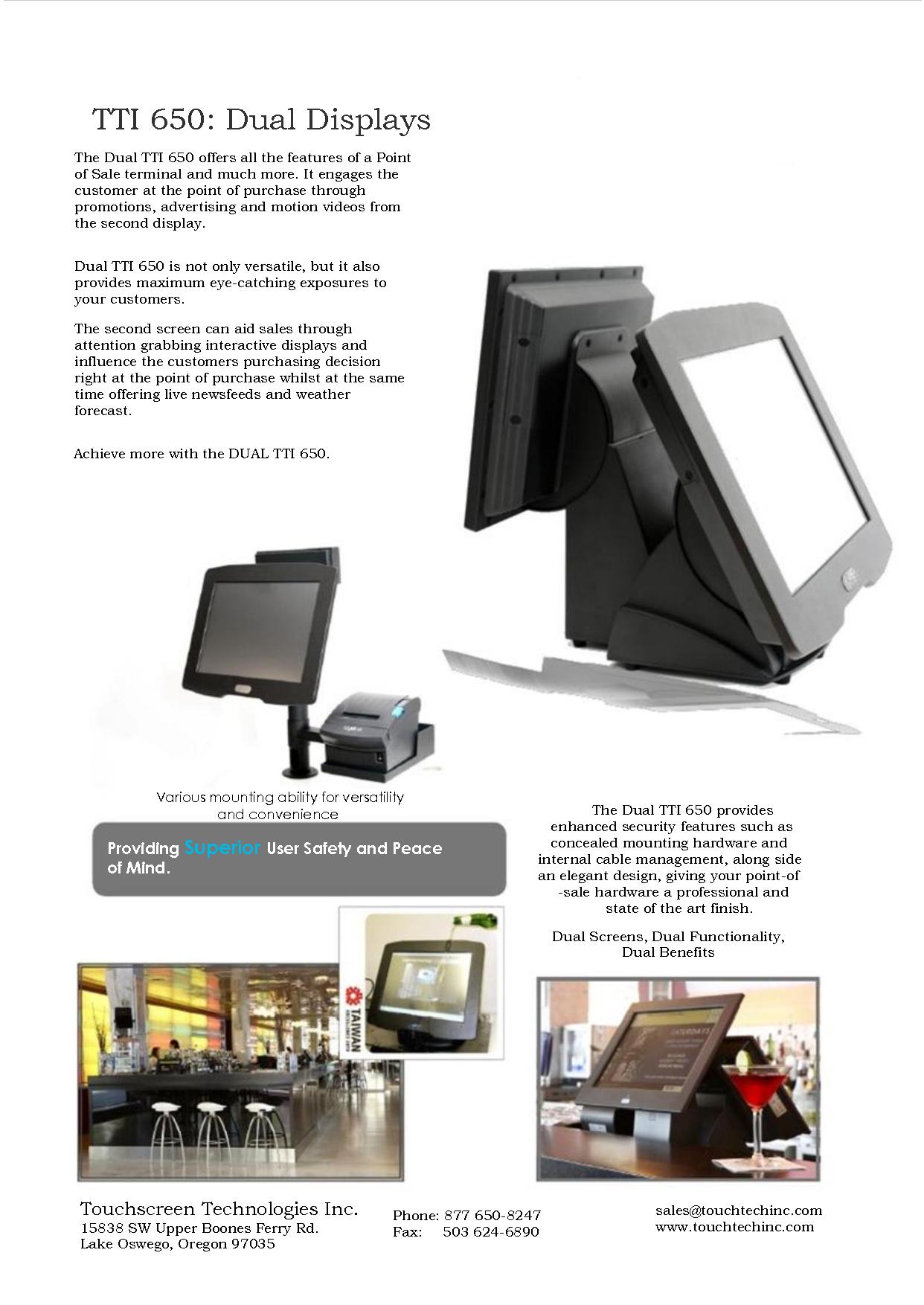

TTI650 Dual Display

Dual Display

TTI650 VFD

Rear VFD Display
