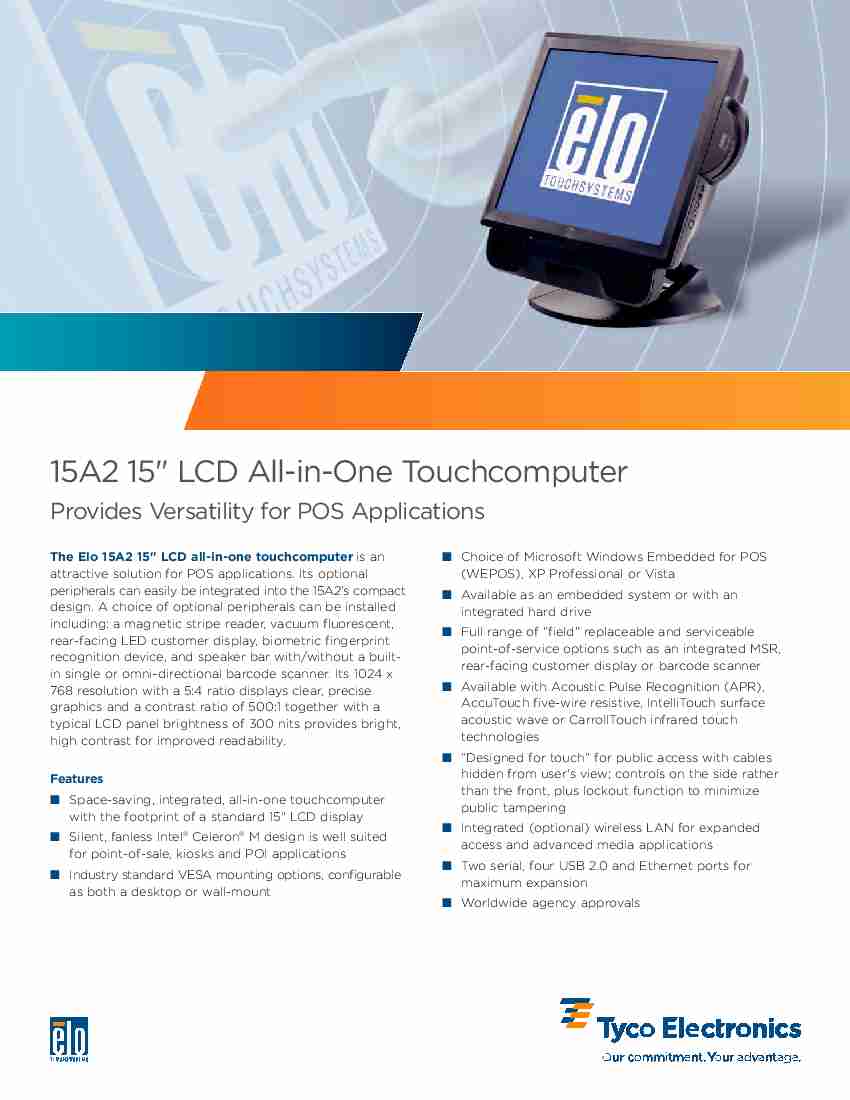

ELO 15A2

The 15A2 touchcomputer with dual video-display capability includes the choice of the industry-leading Elo TouchSystems touch technologies: AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, CarrollTouch infrared and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. The space-saving, compact design of the 15A2 touchcomputer offers increased flexibility for simplified integration of a variety of optional field-replaceable peripherals: three-track magnetic stripe reader (MSR); customer-facing display; biometric fingerprint reader; and 3-watt speaker bar with or without optional single line or omni-directional barcode scanner. A unique cable management design conceals cables from view, providing additional security from tampering and robust tie-downs for strain relief. The multi-adjustable stand offers flexibility to accommodate a variety of installation configurations and the stand is easily removed for secure mounting to countertops and walls. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.

ELO 15A2
  • Features
  • Specifications

• Small integrated, all-in-one touchcomputer

• Silent, fanless Intel® Celeron® M design

• "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting

• Variety of optional field installable and replaceable point-of-service peripherals

• USB 2.0, serial and cash drawer connectivity

• Dual video display capability

• On-screen display controls located on the side rather than the front, plus lockout function

• Securable cable cover and Security lock receptacle

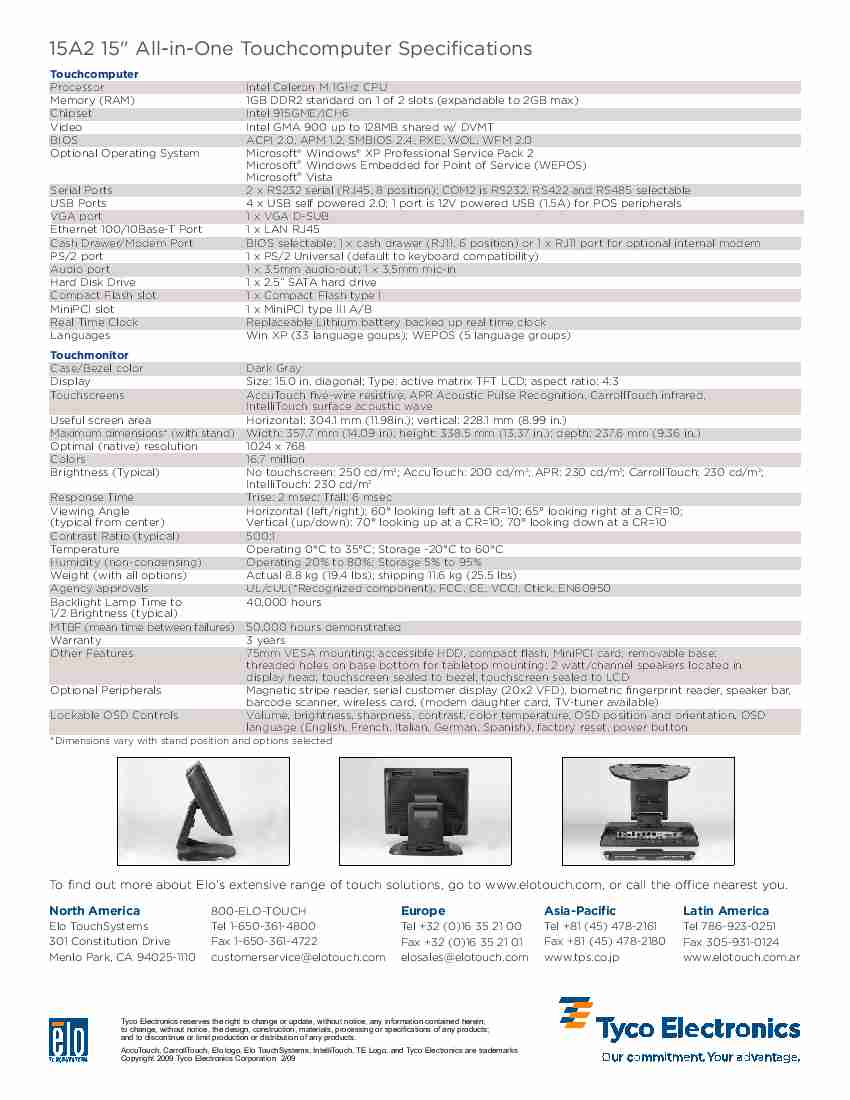

Model 15A2
Processor Intel Celeron M 1GHz CPU
Chipset Intel 915GME/ICH6
Video Intel GMA 900 up to 128MB 1 shared with DVMT
BIOS ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL, WFM 2.0
Memory 1 GB DDR2 standard on 1 of 2 slots Expandable to 2 GB max 2
Hard Disk Drive 1 x 80 GB 2.5" SATA hard drive
USB Ports 4 x USB self powered 2.0 1 port is 12V powered USB (1.5 A) for POS peripherals
Serial Ports 2 x RS-232 serial (RJ45, 8 position) COM2 is RS-232, RS-422 and RS-485 selectable
VGA Port 1 x VGA D-SUB
Ethernet 100/10Base-T Port 1 x LAN RJ45
Cash Drawer/ Modem Port BIOS selectable 1 x cash drawer (RJ11, 6 position) or 1 x RJ11 port for optional internal modem
PS/2 Port 1 x PS/2 universal (default to keyboard compatibility)
Audio Port 1 x 3.5 mm audio-out 1 x 3.5 mm mic-in
Compact Flash Slot 1 x compact flash type I
MiniPCI Slot 1 x miniPCI type IIIA/B
Speakers Two-watt/channel speakers in display head
Display 15.0" diagonal
Aspect Ratio 4:3
Useful Screen Area Horizontal: 12.0" (304 mm) Vertical: 9.0" (228 mm)
Native (Optimal) Resolution 1024 x 768
Other Supported Resolutions 800 x 600
Colors 16.7 million
Brightness (Typical) LCD panel: 250 nits AccuTouch: 200 nits Acoustic Pulse Recognition: 230 nits CarrollTouch: 230 nits IntelliTouch: 230 nits
Response Time - Total (Typical) 8 msec
Viewing Angle (Typical)  Horizontal: 60°/65° or 125° total Vertical: ±70° or 140° total
Contrast Ratio (Typical) 500:1
On-screen Display (OSD) Controls (side): menu, up, down, select, power Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset Languages: English, French, Italian, German, Spanish Lockouts: all controls
Power Supply External DC (power brick)
Input Voltage DC: 12V 120 W min.
Power Consumption Touchcomputer: 85 W max. Serial VFD customer display: 5 W max. USB fingerprint reader: 3 W max. USB magnetic stripe reader: 1 W max. USB scanner: 3 W max. Speaker bar: 7 W max. Modem daughter card: 1 W max. Wireless card/TV tuner: 5 W max. Total power drawn with all possible peripherals: 101 W max.
Computer Dimensions (Max. with Stand) (W x D x H) 14.1" (358 mm) x 9.4" (238 mm) x 13.4" (339 mm)
Dimensions vary with stand position and options selected
Shipping Box Dimensions
(W x D x H) 		20.87" (530 mm) x 14.96" (380 mm) x 9.84" (250 mm)
Weight (with all options) Actual: 19.4 lb (8.8 kg) Shipping: 25.5 lb (11.6 kg)
