TUP592


TM-H6000IV

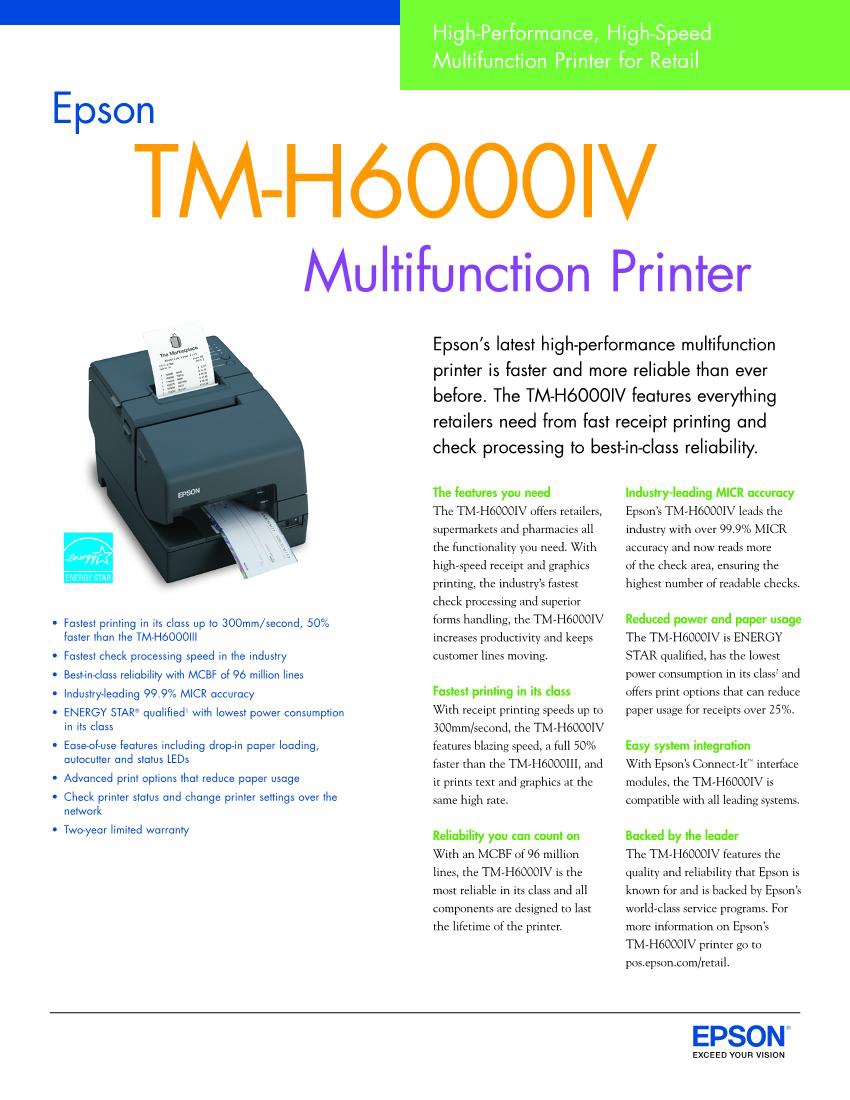

The high-performance TM-H6000IV delivers high-speed receipt and slip printing, endorsement and advanced QuickPass™ check processing all in one compact multifunction printer. It also features the industry’s leading MICR reader with over 99.9% accuracy that virtually eliminating misreads and substitution errors and best-in-class reliability.

  • Features
  • Specifications
  • PDF

• All-in-one-box accessories and software

• Printing up to 150 mm/second

• Integrated power supply

• Ease-of-use features including drop-in paper loading, autocutter and status LEDs

• Low power consumption, ENERGY STAR qualified

• Versatile printer placement options

• Two-year warranty

Print method Thermal line printing
Print fonts 9 x 17 and 12 x 24 dots/character (W x H)
Column capacity Standard: Paper width 80mm: 48/64; Paper width 58mm: 35/46 42 Column Mode: Paper width 80mm: 42/60; Paper width 58mm: 42/31
Character size 0.88 × 2.13 and 1.25 × 3 mm (W x H)
Character set 95 Alphanumeric, 18 set International, 128 × 43 Graphic. Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar. Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
Characters per inch 22.6 and 16.9 cpi
Interface USB
Print speed Max. 150 mm/sec (5.91 in/sec)
Paper dimensions 80mm: 3.13” ± 0.02” x 3.27” diameter (79.5 ± 0.5(W) x 83mm) 58mm: 2.26” ± 0.02” x 3.27” diameter (57.5 ± 0.5(W) x 83mm)
Power 100 – 240V AC, 50/60 Hz
Power consumption Approx. 1.0A
Power supply Internal (AC cable included)
D.K.D. function 2 drivers
Autocutter 1.5 million cuts
Overall dimensions 5.51" x 7.83" x 5.75” (140 x 199 x 146 mm) (W x D x H)
Weight 3.75lb (1.7 kg)
Color Epson Dark Gray, Epson Cool White
Standard accessories Roll paper × 1 roll (for checking the initial movement of the printer), CD-ROM, power switch cover, power switch waterproof cover, wall hanging bracket, screws for wall hanging bracket, rubber feet for vertical installation, switch panel for vertical installation, 58mm width paper guide plate, interface cable, AC cable
Safety standards UL/CSA/EN/TUV/GOST-R
CD ROM contents Drivers & tool software (APD, OPOS™, JavaPOS™, OPOS NET™, TM Virtual port driver, Linux® Cups driver, Mac OS® X driver, ReadyPrint T20 Utility, EpsonNet Simple Viewer), Manuals (ReadyPrint T20 user‘s manual, ReadyPrint T20 software manual)
Installation Horizontal/vertical on counter/vertical on wall with wall hanging bracket
Warranty 2 year limited

TM-H6000IV

TM-H6000IV
